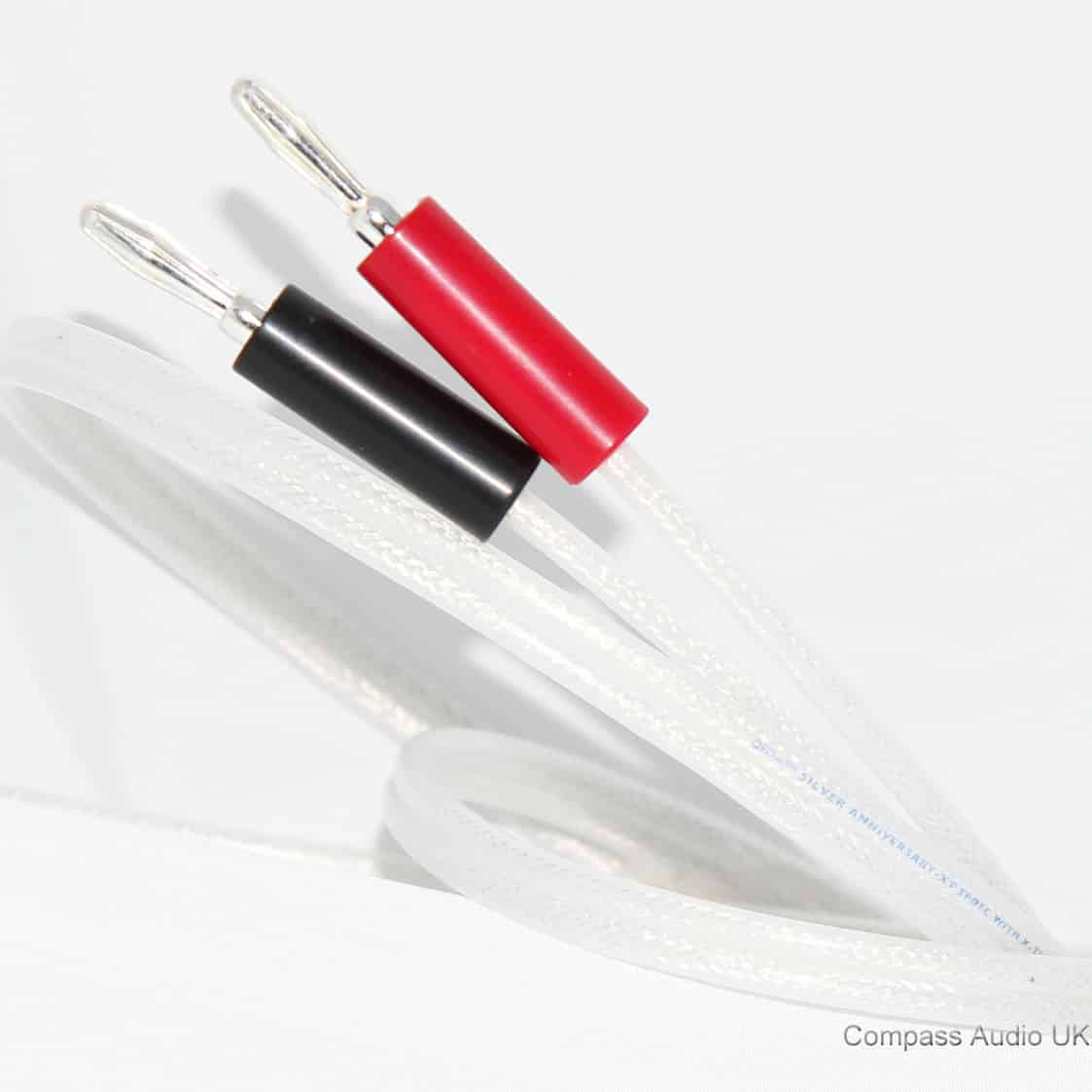

QED Silver Anniversary XT Speaker Cable Silver 4mm Banana Plugs Terminated

Description QED Silver Anniversary XT Speaker Cable Silver 4mm Banana Plugs Terminated Designed with performance in mind, QED Silver Anniversary-XT Reference Speaker Cable has the added enhancement of the Aircore™ technology found in the most prestigious QED X-Tube cables. The precise cylindrical construction of the silver-plated, 99.999% pure, oxygen free copper cables reduces the distortion caused by ‘skin effect’. The result is a completely neutral speaker cable that will allow your hi-fi or home cinema system to perform at its best. The cable is a standard ‘figure 8’ configuration and is attractively finished, with each silver-plated core visible through a flexible 3.9mm diameter clear polyethylene outer sheath. Silver 4mm BANANA PLUGS Terminated Designed to fit standard 4mm amplifier and speaker sockets found on most high-end audio separates, these premium banana plugs are constructed from a silver plated metal conductor with lantern pin section. Termination of speaker cable is facilitated using twin screw fixing for easy assembly. The twin screw cable termination ensures a consistently high level of performance and connectivity. Aircore™ Technology Explained One of the big problems as cable conductor size increases, is how to keep the inductance low. This is vital to reduce cable losses and prevent inaccuracies in the signal transfer process, i.e. distortion.
The normal way to do this is to use a number of individually insulated conductors within the cable construction. This method is utilised to great effect in the design of QED’s Genesis Silver Spiral loudspeaker cables. To take advantage of this design ethos, but in a more conventional format, X-TUBE forms the conductor in the shape of a tube with an inner aircore. This has the same effect as using multiple insulated conductors and ensures that high frequencies are transmitted cleanly, with the added benefit of ease of termination. The unique tubular conductor geometry also provides lower flux density within the conductors, which gives improved transparency to the sound. The overall result is more high frequency detail, less distortion and greater performance. Specifications Wire gauge – 16 AWG Unique SPOFC triple braid 5 x 16 x 0.1mm X-Tube™ technology Jacket OD – 3.90mm Cross-sectional area – 1.50mm² Loop resistance – 0.021 Ω/m Capacitance – 50pF/m Inductance – 0.47 µH/m Dissipation factor – 0.0006 Ideal for use in all installations QED Lifetime Guarantee QED Silver Anniversary XT Reference Speaker Cable available unterminated or fully fitted with Airloc Forte banana plugs and/or Airloc spades on request.
