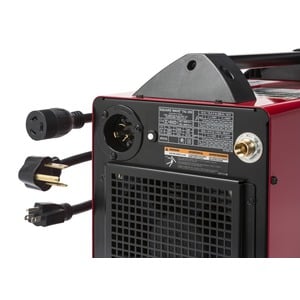

Features and BenefitsDocumentsSpecificationsWhat's IncludedFeatures and Benefits Lincoln Square Wave TIG 200 TIG Welder K5126-1 LIMITED-TIME OFFER (US Only)! Buy a Square Wave TIG 200 TIG Welder and receive a $600 VISA gift card rebate. STACK & SAVE – Up to $200. ADD ACCESSORIES & FILLER METALS FOR MORE SAVINGS. Click on the link below for more details. Redeem Rebate The Lincoln Square Wave TIG 200 is an easy-to-use 200 amp AC/DC TIG welder that features advanced pulse, frequency and AC balance controls. This welder is outstanding for AC aluminum TIG welding. Steel and stainless steel can be welded in the DC TIG mode. It operates on either 120V or 230V input power and comes complete with everything you need to start TIG welding, except filler metal and shielding gas. The Square Wave TIG 200 provides up to 200 amps of TIG welding output and up to 170 amps of output for stick welding. SIMPLICITY WITHOUT COMPROMISE The LincolnSquare Wave TIG 200 is a portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity. It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200’s additional functionality. No matter your skill level, you won’t be disappointed. The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly. A user-friendly interface enables the operators to set it, forget it and weld. ADVANCED FEATURES YET EASY TO USE The user interface makes machine setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder – faster. A Great TIG Machine for Aluminum – For a wider or tighter welding bead, users can easily adjust AC Frequency Control. AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials. TIG and Stick from One Power Source – The multi-process machine can TIG weld when precision and bead appearance are important. Users also have the advantage of stick welding capability for outdoor work or thicker materials. Take it Everywhere, Plug in Anywhere.™ – Plug in the Square Wave TIG 200 where you need it – a standard 120V circuit or 230V for maximum output. Portable and convenient to use, only 46 lb (21 kg). Comes complete with Square Wave® TIG 200 MP® TIG Welder PTA-17 Series 150 Amp Air-cooled TIG Torch with Flexible Head and Ultra-Flex™ Cable Assembly with TIG Torch Parts Remote Foot Amptrol™ Regulator/Flowmeter with Gas hose Stick Electrode Holder Ground Clamp 120/230V Input Cords Documents Product Info Product Brief Quick Reference Guide Specifications INPUT POWER 120/230/1/50/60 RATED OUTPUT 120V: TIG: 125A/25% (AC TIG 110A/25%) TIG: 100A/40% TIG: 85A/60% Stick: 75A/20% Stick: 65A/60% 230V: TIG: 200A/25% TIG: 160A/40% TIG: 130A/60% Stick: 170A/20% Stick: 100A/60% INPUT CURRENT 120V: TIG: 25% Duty Cycle 21A TIG: 40% Duty Cycle 17A TIG: 60% Duty Cycle 14A Stick: 20% Duty Cycle 19A Stick: 60% Duty Cycle 16A 230V: TIG: 25% Duty Cycle 22A TIG: 40% Duty Cycle 17A TIG: 60% Duty Cycle 13A OUTPUT RANGE 120V: TIG: 10-125A Stick: 10-90A 230V: TIG: 10-200A Stick: 10-170A DIMENSIONS (H X W X D) 14 in x 10.75 in x 19.25 in (358 mm x 282 mm x 502 mm) NET WEIGHT 46.50 (21.09 kg) SETTING RANGE RESULTS AC FREQUENCY 60-150 (Hz) A lower frequency results in a wider bead A higher frequency results in a more focused bead AC BALANCE 60-90 (%Electrode Negative) A lower AC Balance (%EN) results in an arc with increased cleaning action A higher AC Balance (%EN) results in an arc with higher penetration PULSE 0.1-20 (Pulses per second) Lower pulse frequency helps moderate filler metal deposition A higher pulse frequency helps manage heat input and minimize material distortion What's Included K1782-14 PTA-17 TIG Torch Ready-Pak® K870 Foot Amptrol™ Gas Regulator/Flowmeter and 10 ft. (3 m) Gas Hose Kit 200A Stick Electrode Holder Ground Clamp and Cable 120 and 230V Input Cords SKU: K5126-1 Categories: Brands, Equipment, Lincoln Electric, Lincoln Tig Welders, Specials Tag: Lincoln Tig Welders Brand: Lincoln Electric
