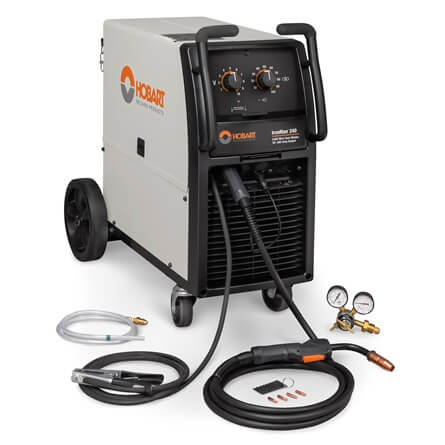

Hobart IronMan 240 Complete Single-Phase MIG Welding Package – 500574 Experience unmatched welding performance with the Hobart IronMan 240 Mig Welder, designed to outperform the competition in arc quality, voltage control, and overall value. Whether you’re a professional or aspire to weld like one, the IronMan 240 delivers exceptional power and precision, making it the top choice in its class. Key Features: Powerful Output: Offers a welding amp range of 30 to 280 amps, allowing you to weld from as thin as 24 gauge up to 1/2 inch (13 mm) mild steel. Dual-Geared Wire Drive System: The aluminum housing provides a wire feed speed range of 50 to 700 ipm, ensuring consistent and reliable performance. Reversible Drive Roll: The drive roll features two grooves for two wire sizes, reducing spare parts and changeover time. Infinite Voltage Control: Easily set and adjust for different materials and thicknesses for finer control, less spatter, and cleaner welds. Spool Gun Ready: The SpoolRunner™ 200 spool gun enhances feedability and reduces bird-nesting without the need for additional control boxes or adapters. (Not included, must order separatel) Run-In Technology: Automatically slows wire feed speed before arc initiation, improving arc starts and resulting in smooth, spatter-free welds. Fan-On-Demand™: The cooling system operates only when needed, reducing power consumption and minimizing contaminants. Hobart 5/3/1 Industrial Warranty: Includes a five-year warranty on transformers, stabilizers, and main rectifiers; three years on generators, PC boards, and drive systems; and one year on guns (MIG, plasma, and TIG torches). Applications: Maintenance/Repair Auto Body Manufacturing Construction Farm/Ranch Metal Art Specifications: Welding Amp Range: 30–280 A Rated Output: 200 A at 24 VDC, 60% duty cycle Mild Steel Thickness Range: 24 ga.–1/2 in. Wire Feed Speed Range: 50–700 ipm (1.3–17.8 m/min.) Dimensions: H: 30 in. (762 mm), W: 19 in. (483 mm), D: 40 in. (1,016 mm) Net Weight: 186 lb. (84 kg) Includes: 15 ft. (4.6 m) MIG gun 10 ft. (3 m) work cable with clamp Power cord with plug Regulator/flow gauge with 5 ft. (1.5 m) gas hose .030 and .035 in. contact tips Dual-groove .030/.035 in. drive roll Built-in running gear/cylinder rack Performance Data: Rated Output: 200 A at 24 VDC, 60% duty cycle Open Circuit Voltage: 40 VDC Amperes Input at Rated Load (208 V / 240 V): 57.0 / 50.8 KVA / KW: 11.4 / 7.1 Additional Accessories: Protective Cover: Keep your welder protected with a form-fitted, vinyl-laminated, polyester fabric cover. Reversible V-Groove Drive Rolls: Available for different wire sizes and types. MIG Gun and Accessories: Replacement MIG guns, contact tips, nozzles, adapters, and liners. Spool Gun and Accessories: The SpoolRunner™ 200 Spool Gun, contact tips, nozzles, and drive rolls. Important Notes: Certified by Canadian Standards Association to both Canadian and U.S. Standards. Operating temperature range: -4° to 104°F (-20° to 40°C). Running off of generator power is not recommended for the IronMan 240. SKU: 500574 Categories: Brands, Hobart Welding Products, MIG Welding (GMAW) Tags: hobart, mig welder Brand: Hobart
