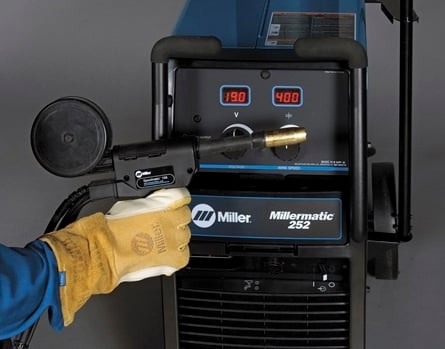

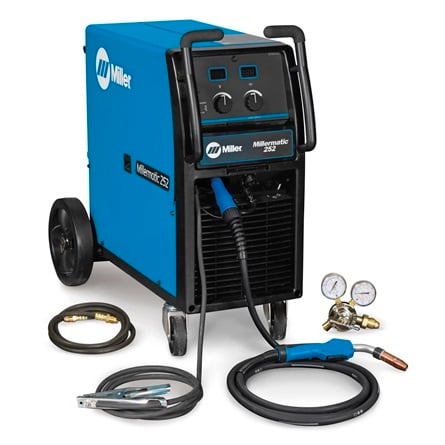

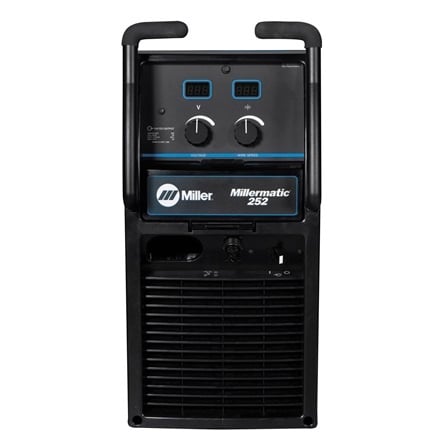

Features and BenefitsWhat's IncludedSpecificationsDocumentsFeatures and Benefits Millermatic 252 MIG Welder 208/230 Volt 907321 The Miller Millermatic 252 MIG welder is a 250 amp, all-in-one MIG welding package that provides a superior arc when welding 22 gauge up to 1/2 in metal. Engineered for performance, the Active Arc Stabilizer provides the most consistent arc starts in its class along with optimum weld performance in all settings. Aluminum welding setup is easy with the direct hookup of the optional Spoolmatic 30A. With Miller’s exclusive Auto-Gun-Detect, simply pull the trigger for either gun and you’re ready to weld. The Millermatic 252 features direct plug for XR push-pull gun for professional aluminum wire feed capability. XR-type guns can be directly connected to the Millermatic 252. This allows you to use 12 inch rolls of wire instead of the more expensive 1 lb rolls with the spoolgun. Processes MIG (GMAW) Flux Cored (FCAW) Applications Metal Fabrication Maintenance and Repair Farm/Hobby Light Industrial Applications Features Highest output in its class (250 A at 28 VDC). Weld longer on high end applications. Large, digital front panel with built-in digital timers menu enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu. Auto Gun Detect™ allows operator to simply pull trigger on MIG gun, spool gun, or push/pull gun. Automatically detects and recalls the voltage, wire feed speed, and timer of the active gun. Push-Pull Gun Direct Connect – now directly connects your push-pull gun, no extra module required. Angled, dual-gear driven, cast aluminum drive system features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob. EZ-Change™ Low Cylinder Rack allows operators to easily roll cylinders on and off of rack – no need to lift cylinders. EZ-Access™ Consumable Compartment and Parameter Chart – set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables. Less weld cleanup with Active Arc Stabilizer™ patented Miller design provides excellent starts proven superior to the competition. Fan-On-Demand™ cooling system operates only when needed reducing power consumption and contaminants drawn into the machine. Line voltage compensation keeps power constant even if input voltages varies by /-10%. Specs Comes complete with: Millermatic® 252 MIG Welder wired for 208/230 volt input power 15 ft (4.6 m), 250 amp MDX™-250 MIG gun for .030/.035 in wire 10 ft (3 m) Work cable with clamp Factory – installed gas solenoid Argon mix regulator/flow gauge and hose 10 ft (3 m) power cord and plug (200/230 V model only) Factory-installed running gear with EZ-Change™ Low Cylinder Rack .030/.035 in reversible drive rolls Extra contact tips [/vc_column_text] Auto Gun Detect™ Miller’s Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun. Push-Pull Gun Direct Connect Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun. Angled, Dual-Gear Driven, Cast Aluminum Drive System Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob. EZ-Change™ Low Cylinder Rack Allows operators to easily roll cylinders on and off of rack – no need to lift cylinders. EZ-Access™ Consumable Compartment and Parameter Chart. Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables. Larger Work Area Now with longer 15-ft M-25 gun. What's Included Millermatic® 252 10 ft (3 m) power cord and plug 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/ Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire 10 ft (3 m) work cable and clamp Argon mix regulator/flow gauge and hose Extra contact tips Factory-installed running gear with EZ-Change™ Single Low Cylinder Rack .030/.035 in reversible drive rolls NOT INCLUDED Shielding gas (for welding with solid wire [GMAW]) Flux cored drive rolls (for welding with flux cored wire [FCAW]) Spool Gun (for welding aluminum) Welding wire Personal safety products (helmet, gloves) Your local welding distributor can provide shielding gas, additional welding wire and a full product offering. Specifications PROCESSES Flux Cored (FCAW) MIG (GMAW) Title Millermatic® 252 MIG Welder – 200(208)/230V Industries Interests Racing / Customizing / Restoring DIY / Home Hobbyist Farm and Ranch Manufacturing Metal Art / Sculptures Material Thickness Mild Steel 22 ga. (0.9 mm) – 1/2 in. (13 mm) Aluminum 14 ga. (1.9 mm) – 3/8 in. (9.5 mm) Weldable Metals Stainless Steel Steel Aluminum Input Voltage 208 V 220/230/240 V Input Phase 1-Phase Input Hz 60 Hz Input Amperage 42 A Current Type DC Rated Output 200 Amps at 28 VDC, 60% duty cycle,250 Amps at 28 VDC, 40% duty cycle Max Open Circuit Voltage 38 VDC Amperage Range 30 A – 300 A Wire Feed Speed 1.3 m/min – 17.8 m/min 50 IPM – 700 IPM Wire Diameter Solid Steel 0.023 in 0.045 in Solid Steel 0.6 mm 1.2 mm Stainless 0.023 in 0.045 in Stainless 0.6 mm 1.2 mm Flux Cored 0.03 in 0.045 in Flux Cored 0.8 mm 1.2 mm Spool Size 12 in (305 mm) Portability Running Gear / Cart (Standard) Weld Output CV Net Width 19 in Net Height 30 in Net Length 40 in Net Weight 205 lbs Warranty 3 Years CERTIFICATIONS CSA Certificate of Compliance 2399465 CSA Certificate of Compliance 80004974 Documents Spec Sheet (ENG) Spec Sheet (ESP) SKU: 907321 Categories: Brands, Equipment, Mig Welder Accessories, Mig Welders, MIG Welding (GMAW), Miller Electric Tags: mig welder, Miller, millermatic Brand: Miller
