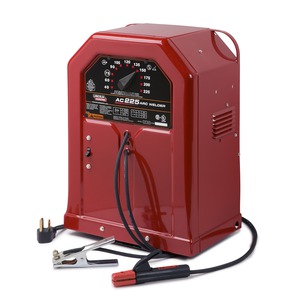

Features and BenefitsDocumentsSpecificationsWhat's IncludedFeatures and Benefits The AC225 compact stick welder produces an extremely smooth AC arc for welding a wide variety of materials including carbon, low alloy, and stainless steels as well as cast iron. Easy to install – Comes with attached 6 ft. (1.8m) input power cable and NEMA 6-50P plug. Easy to operate – Full range 40-225 amp selector switch quickly sets the welding current and ensures a uniform arc each and every time you weld. Smooth arc – Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes. 225 amp AC output – Is enough for 3/16″ (4.8mm) diameter general purpose mild steel electrodes and 5/32″ (4.0mm) sizes of other electrodes. NEMA rated, UL listed and CSA approved. Documents AC225 Product Info Specifications INPUT POWER 230/1/60 RATED OUTPUT 225A/25V/20% INPUT CURRENT 50A OUTPUT RANGE 40-225A AC DIMENSIONS (H X W X D) 24 in x 17.25 in x 12 in (610 mm x 438 mm x 305 mm) NET WEIGHT 96.00 (43.55 kg) What's Included Insulated electrode holder and cable Heavy duty work clamp and cable Input cable with attached plug SKU: K1170 Categories: Brands, Lincoln Electric, Stick Welding (SMAW) Brand: Lincoln Electric
