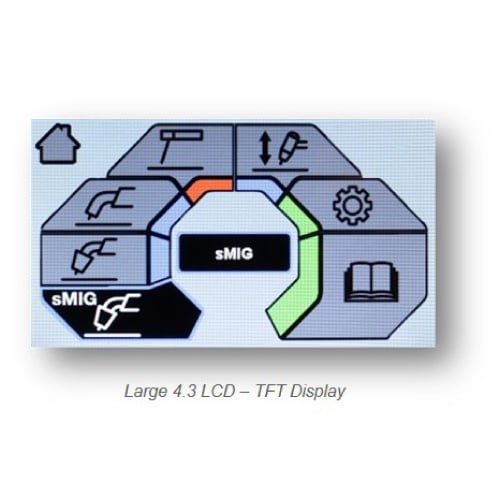

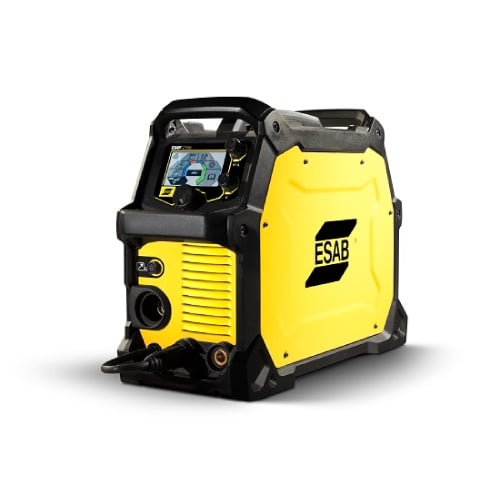

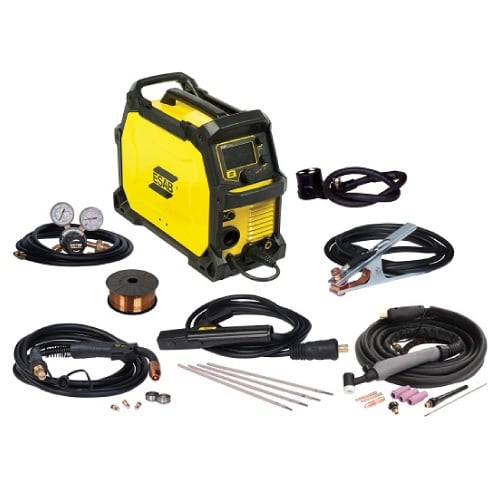

FeaturesSpecificationsDocumentsIndustriesFeatures True multi-process performance for best-in-class MIG, Flux-Cored, Stick, including 6010 Stick electrodes, and Lift TIG welding with Rebel EMP 215ic Exclusive sMIG (“smart MIG”) feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders Innovative display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user’s manual, listing of spare parts – all in multiple languages Unique, five-handle roll cage industrial design and unibody steel construction in a lightweight, highly portable unit; 3-year handle-to-handle warranty Rebel Series models come ready to weld out of the box with Professional Grade TWECO accessories and Victor gas regulator. Shielding gas not included. Specifications Specifications Standards CSA E60974-1-00, IEC 60974-1 Arc Gun Consumables Use With Welding Material 9.5 mm (3/8 in.) Conditional Statement Max Plate Thickness Arc Holders Clamps & Misc Cable 2m (6.5ft) Power Specifications Conditional Statement MIG Welding Max Output (A) 240 A Max Output (V) 26 V Open Circuit Voltage 68 VDC Protection Class IP23S Voltage Steps Minimum 10 Voltage Steps Maximum 20 Voltage Range (V) 10-26 V 90-270 V Current Range(A) 5 – 150 A (120 V), 5 – 240 A (230 V) A Supply Plug 230 V, NEMA 6-50P Input Voltage Voltage 120; 208/230 V Phase 1 Frequency 50/60 Hz Welding Output Model Duty Cycle Output Current Output Voltage Welding Process 120 V 40 % 90 A 23.6 V Stick (SMAW) 120 V 40 % 130 A 15.2 V TIG (GTAW) 120 V 20 % 130 A 20.5 V MIG (GMAW) 230 V 25 % 180 A 27.2 V Stick (SMAW) 230 V 30 % 180 A 17.2 V TIG (GTAW) 230 V 25 % 205 A 24.3 V MIG (GMAW) Dimensions Length 584 mm (23 in.) Width 229 mm (9 in.) Height 406 mm (16 in.) Wire Feeder Specifications Metal Stainless Steel Wire Diameter 0.8-0.9 mm (.030-.035 in.) Metal Aluminum Wire Diameter 0.8-1.2 mm (.030-.045 in.) Metal Mild Steel Wire Diameter 0.6-0.9 mm (.024-.035 in.) Metal Flux Cored Wire Diameter 0.8-1.2 mm (.030-.045 in.) Max Spool Diameter 100 & 200 mm (4 & 8 in.) Wire Feed Speed 1.5-12.1 m/min (59-476 in./min) Weight Weight 18.2 kg (40 lb) Documents Rebel™ EMP 215ic – Fact Sheet (en) Rebel™ EMP 215ic – Brochure (en) Industries Automotive Agricultural Equipment Civil Construction Repair and Maintenance Light Fabrication Automotive Bodies HVAC SKU: 558102240 Categories: Brands, ESAB, Multiprocess Welding Brand: ESAB
