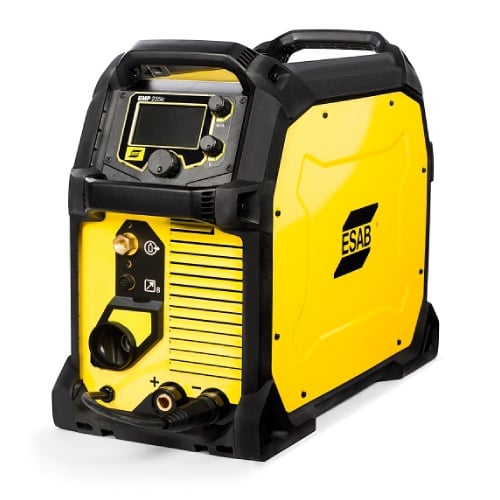

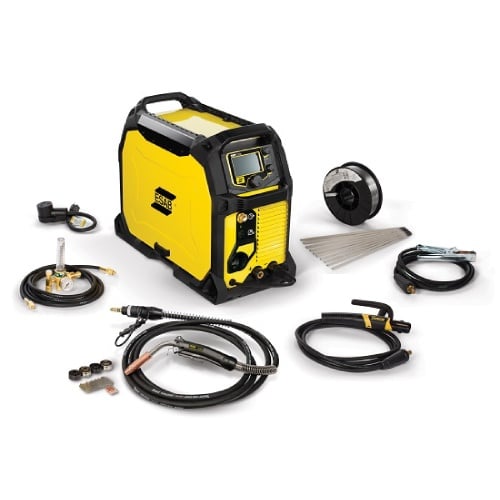

FeaturesSpecificationsDocumentsIndustriesFeatures True Multi-Process – excellent performance on MIG, TIG and STICK. Unmatched Portability – weighing in at 53 lbs. (24 kg) with dual voltage capability and 4 handle roll cage. Detach the Rebel 235ic from its cart and tackle any job around the shop or out at the job site. Power to Perform – have the confidence with Rebel 235ic to run the full range of .035 in. (0.9 mm) wire – short arc and spray transfer. Also up to .045 in. (1.2 mm) solid wire and up to .052 in. (1.4 mm) cored wire. Plus, rods up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm) sMIG Technology – innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld. Specifications Specifications Standards CSA E60974-1-00 / UL60974-1 / IEC60974-1 Arc Gun Consumables Use With Welding Material 12.7 mm (1/2 in.) Conditional Statement Max Plate Thickness Arc Holders Clamps & Misc Cable 3 m (10 ft) Power Specifications Max Output (A) 250 A Max Output (V) 30 V Voltage Tolerance 120 V 230 V Open Circuit Voltage 90 VDC Protection Class IP23S Voltage Range (V) 90-270 VAC Current Range(A) 5-150 A 5-250 A Supply Plug 230 V, NEMA 6-50P Input Voltage Voltage 120, 208/230 VAC Phase 1 Frequency 50/60 Hz Welding Output Duty Cycle Input Voltage Output Current Output Voltage Temperature (met) Welding Process 40 % 120V 120 A 19 V 40 °C(104 degF) MIG (GMAW/FCAW) 40 % 230V 235 A 26 V 40 °C(104 degF) MIG (GMAW/FCAW) 40 % 120V 90 A 23.6 V 40 °C(104 degF) Stick (SMAW) 25 % 230V 210 A 28.4 V 40 °C(104 degF) Stick (SMAW) 40 % 120V 130 A 15.2 V 40 °C(104 degF) TIG (GTAW) 40 % 230V 240 A 19.6 V 40 °C(104 degF) TIG (GTAW) Dimensions Length 686 mm (26.5 in.) Width 292 mm (11.5 in.) Height 495 mm (19.5 in.) Wire Feeder Specifications Max Spool Diameter 100, 200 & 300 mm (4, 8 & 12 in.) Wire Feed Speed 1.5-18 m/min (60-700 in./min) Metal Aluminum Wire Diameter 0.8-1.2 mm (.030-.047 in.) Metal Mild Steel Wire Diameter 0.6-1.2 mm (.024-.045 in.) Metal Stainless Steel Wire Diameter 0.8-1.2 mm (.030-.045 in.) Metal Flux Cored Wire Diameter 0.8-1.4 mm (.030-.052 in.) Weight Weight 24 kg (53 lb) Documents Rebel™ EMP 235ic – Fact Sheet (en) Rebel™ EMP 235ic – Brochure (en) Industries Automotive Agricultural Equipment Civil Construction Industrial and General Fabrication Repair and Maintenance HVAC SKU: 558012702 Categories: Brands, ESAB, Multiprocess Welding Brand: ESAB
