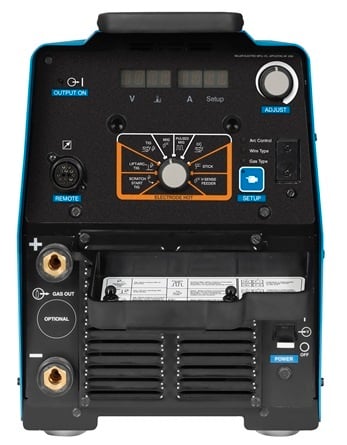

FeaturesSpecificationsResourcesFeatures Built-in Pulse programs Provide reduced heat affected zone, weld in all positions, great for thick-to-thin metal, good gap filling ability and faster travel speeds and deposition. SharpArc® Controls the arc in Pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile. Auto-Line™ Power Management Technology Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power. Advanced features for the professional welder Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency. Standard 14-pin Receptacle Has the flexibility to be used with spool guns, feeders, and remote controls. Welder friendly control panel Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output. Output connector choices Dinse- or Tweco®-style weld cable connectors provide high-quality weld cable connections. (Note: Two Dinse connectors are supplied with each Dinse machine. Tweco connectors must be ordered separately.) Reliability Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine. Added Features 70 Series MPa wire feeder provides synergic pulsed MIG – as you increase/decrease the wire feed speed, the pulse parameters increase/decrease, matching the right amount of power output to match the wire speed, eliminating the need to make additional adjustments. 70 Series MPa adds wire deposition capabilities with Insight Core™. XR-AlumaFeed™ wire feeder provides Profile Pulse™ – TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance. Specifications PROCESSES Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Stick (SMAW) TIG (GTAW) GENERAL SPECIFICATIONS Title XMT® 350 MPa, Dinse®, Aux Power Industries Interests Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding DIY / Home Hobbyist High Purity Processing Boat / Yacht Weldable Metals Aluminum Specialty Metals Stainless Steel Steel Input Voltage 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V Input Phase 1- and 3-Phase Input Hz 50 / 60 Hz Input Amperage 3 Phase – 208 V (40.4 A), 230 V (36.1 A), 400 V (20.6 A), 460 V (17.8 A), 575 V (14.1 A) Current Type DC Max Open Circuit Voltage 75 VDC Portability Handle(s) Running Gear / Cart (Optional) Weld Output CC / CV Net Width 12.5 in Net Height 17 in Net Length 24 in Net Weight 80 lbs Warranty 3 Years Miller’s True Blue Warranty Resources Pipe and Tank Product Guide Petrochemical Brochure SKU: 907366011 Categories: Brands, Miller Electric, Multiprocess Welding Brand: Miller
