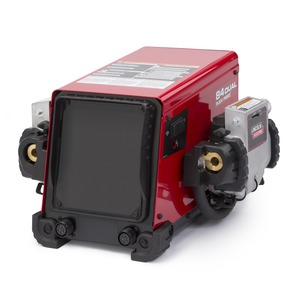

Features and BenefitsDocumentsSpecificationsWhat´s IncludedFeatures and Benefits Digital Control Semiautomatic Wire Feeders The Power Feed 84 family raises the bar for advanced process feeders by providing comprehensive process adjustability and control in a simple to use, rugged design. Simple & Customizable Controls New Auto-Settings simplify process setup Eight User Memories – Per feed head for complete welding procedure recall USB Port – Simplifies machine setup and expands user profiles User Interface – Can be customized to display customer specific information Contactor and gouge kit isolate the feedheads for additional safety Rugged Design Improved isolation & environmental protection Robust connection points allow for reliable operation in tough conditions Modular Platform Modularity ensures the feeder can be configured to fit a variety of application needs Documents Power Feed 84 Product Info Flex Feed 74, Flex Feed 84, Power Feed 84 Wire Feeders Specifications SOLID WIRE SIZE RANGE .025 – 1/16 in (0.6 – 1.6 mm) CORED WIRE SIZE RANGE .035 – .120 in (0.9 – 3.0 mm) WIRE SPEED RANGE IPM (M/MIN) 50-700 ipm (1.3-19 m/min) DIMENSIONS (H X W X D) 25.2 in x 15.5 in x 27.9 in (640 mm x 394 mm x 709 mm) NET WEIGHT 64.00 (29.03 kg) What´s Included Standard #2 – #4 gun adapter 20 tooth pinion gear Conduit inlet bushing (K3929-1) SKU: K3330-1 Categories: Advanced Process, Brands, Lincoln Electric, Wire Feeders
