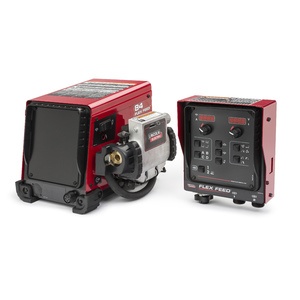

Lincoln Electric Flex Feed 84 Single Or Dual Control Box, U/I-

Features and BenefitsDocumentsSpecificationsFeatures and Benefits Rugged and reliable engineering • Consistent feeding over long conduit runs • Handles large-diameter wires (up to 3/32 in. (2.4 mm) solid or .120 in. (3.2 mm) cored wire), well beyond the competition’s 5/64-in. capacity • Gun adapters provide superior electrical connections reducing voltage drops and simplifying connections • Wire drive circuit board is encapsulated for maximum protection from the elements Superior process control • Digital preset for voltage and wire feed speed • Save repeated procedures in up to four user memories • Process limits can be set and passcode secured • Displays actual voltage and current while welding Safety with every process • Single model feeders can be ordered with an electrically isolated stud for arc gouging operations • Dual model can be ordered with a Power Path™ contactor that electrically isolates the non-active wire drive and gun • User selectable wire retract function physically retracts the wire back into the nozzle to prevent operator injury Advanced MaxTrac® wire drive design • Rugged cast aluminum feed plate protects wire and ensures consistent wire feeding • Patented tool-less drive rolls make adjustments and maintenance quick and easy • Patented tool-less split wire guides ensure uninterrupted feed and prevents birdnesting Modular design provides flexibility of configurations • Configure for single, dual, bench or boom setups (convert as workspace needs change) • Two available wire reel stands; standard (up to 44-lb. spools) or heavy duty (up to 60-lb. coils or spools) • Built-in interface for hard automation Documents Flex Feed 84 / Flex Feed 84 Dual Product Brief Flex Feed 74, Flex Feed 84, Power Feed 84 Wire Feeders Specifications SOLID WIRE SIZE RANGE .025 – 3/32 in (0.6 – 2.4 mm) CORED WIRE SIZE RANGE .035 – .120 in (0.9 – 3.0 mm) WIRE SPEED RANGE IPM (M/MIN) 35-500 ipm (0.9-12.7 m/min) with installed 20 tooth pinion gear 50-750 ipm (1.3-19.1 m/min) can ban achieved by installing the 30 tooth pinion gear DIMENSIONS (H X W X D) 11.1 in x 8.7 in x 3.6 in (282 mm x 221 mm x 91 mm) NET WEIGHT 5.70 (2.59 kg) SKU: K5004-1 Categories: Boom, Brands, Lincoln Electric, Wire Feeders Brand: Lincoln Electric
