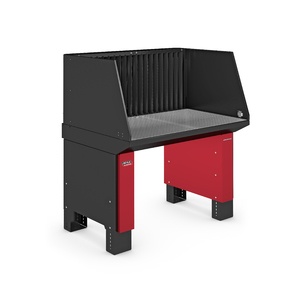

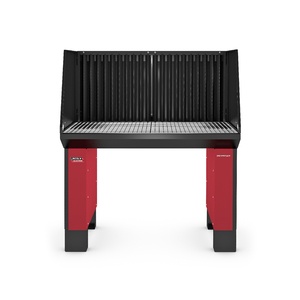

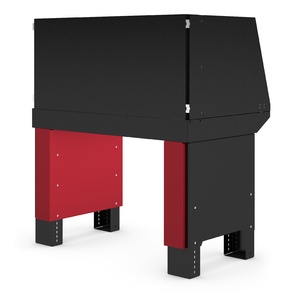

Lincoln Electric Downflex 100-Nf Weld Fume Downdraft Table
$67.46
$93.77

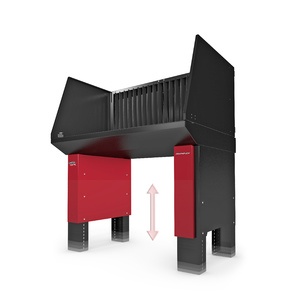

Features and BenefitsDocumentsSpecificationsWhat´s IncludedFeatures and Benefits The Downflex® 100-NF is a compact table that can be placed in multiple locations around a welding shop. This durable table allows the customer the ability to add their own customized extraction system. Complete and affordable system includes – side panels, backdraft panels, dust collection tray and adjustable feet Adjustable height from 31.5 – 37.4 in (800-950 mm) – for standing or sitting work environments Durable, rugged design Documents Downflex 100-NF Product Info Specifications DIMENSIONS (H X W X D) 61.9 in x 36 in x 54.1 in (1751 mm x 914.4 mm x 1374.4 mm) NET WEIGHT 388.00 (176.00 kg) DUCTING SIZE CONNECTION: 12 in (304.8 mm) FILTER TYPE: No Filtration RECOMMENDED EXTRACTION CAPACITY m2/h: 3000 PRESSUE DROP Pa @ m2/h: 315 @ 3200 450 @ 3000 w/ optional spark arrestors WORKING HEIGHT ADJUSTMENT: 31.5 – 37.4 in (800 – 950 mm) MAXIMUM LOAD CAPACITY lb (kg): 550 lb (249.4 kg) What´s Included Sturdy Welding Table Backdraft Panel Side Panels Dust Collection Tray Adjustable Feet SKU: K2751-9 Categories: Brands, Downdraft Tables, Lincoln Electric, Weld Fume Control Brand: Lincoln Electric
